Jain's Enhanced life cycle performance and durability

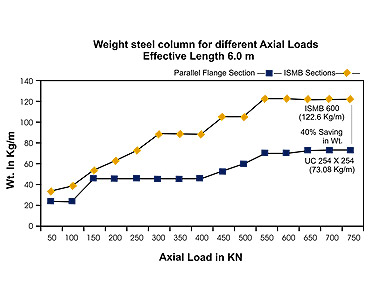

Beams section offers higher axial compression load carrying capacity. These section are afficiently designed for higher radius of gyration about-Y-Y aixes and thereby reduced slenderness ratio and increased allowable stress.
.gif)

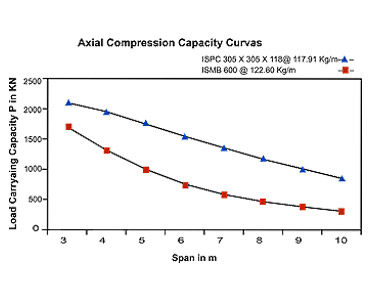

| Section Weight (kg/m) Area (mm2) Es (Mpa) fy (Mpa) ry (mm) |
ISMB 600 122.60 15621.00 200000 250 41.20 |
ISPC 305 X 305 X 118 117.91 15020.28 200000 250 77.66 |
||||
Length m |
I / ry |
P Kn |
P/Wt. Kn per kg |
I / ry |
P Kn |
P/Wt. Kn per kg |
3 4 5 6 7 8 9 10 |
72.82 97.09 121.36 145.63 169.90 194.17 218.45 242.72 |
1696.20 1300.55 1979.49 743.97 575.82 455.17 367.10 301.47 |
13.84 10.61 7.99 6.07 4.70 371 2.99 2.46 |
38.63 51.51 64.38 77.26 90.14 103.01 115.89 128.76 |
2108.95 1958.21 1766.99 1558.57 1354.14 1167.27 1003.86 864.62 |
17.89 16.61 14.99 13.22 11.48 9.90 8.51 7.33 |
