50x50x5mm to 200x200x20mm
As per IS : 2062-99 Grade 'A', 'B' & 'C'

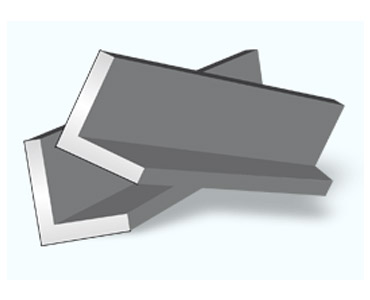

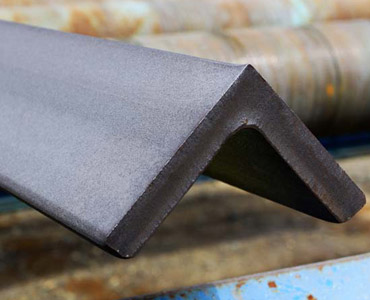

Angles
Jain's Angles
Special Feature
- Low temperature rolling imparts higher strength to the structures.
- Pilling and automatic tying of the structurally ensure minimum damage during handling and transport.
- Invoicing : As per actual weight.
Item |
Size(mm) |
Sec.Wt. |
Sec.
Area,a |
D |
B |
T |
kg/m |
kg/m |
mm |
mm |
mm |
||
Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle Angle |
50x50x5 50x50x6 50x50x8 60x60x5 60x60x6 60x60x8 65x65x5 65x65x6 65x65x8 65x65x10 75x75x5 75x75x6 75x75x8 75x75x10 80x80x6 80x80x8 90x90x6 90x90x8 90x90x10 100x100x6 100x100x8 100x100x10 110x110x8 110x110x10 110x110x12 130x130x8 130x130x10 130x130x12 150x150x10 150x150x20 200x200x12 200x200x16 200x200x20 |
3.80 4.50 6.00 4.50 5.40 7.00 4.90 5.80 7.70 9.40 5.70 6.80 8.90 11.00 7.30 9.60 8.20 10.80 13.40 9.20 12.10 14.90 13.40 16.60 19.70 15.90 19.70 23.50 22.9 44.1 36.9 48.5 60 |
4.79 5.68 7.41 5.75 6.84 8.96 6.25 7.44 9.76 12.00 7.27 8.66 11.40 14.00 9.29 12.20 10.50 13.80 17.00 11.70 15.40 19.00 17.10 21.10 25.10 20.30 25.10 29.90 29.2 56.2 46.9 61.8 76.4 |
50 50 50 60 60 60 65 65 65 65 75 75 75 75 80 80 90 90 90 100 100 100 110 110 110 130 130 130 150 150 200 200 200 |
50 50 50 60 60 60 65 65 65 65 75 75 75 75 80 80 90 90 90 100 100 100 110 110 110 130 130 130 150 150 200 200 200 |
5 6 8 5 6 8 5 6 8 10 5 6 8 10 6 8 6 8 10 6 8 10 8 10 12 8 10 12 10 20 12 16 20 |
