100 mm to 203mm
As per IS : 2062-99 Grade 'A', 'B' & 'C'

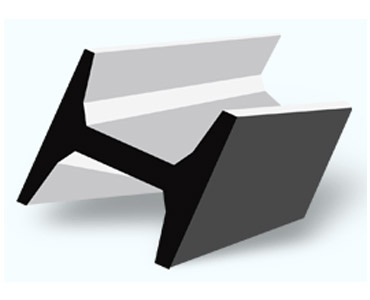

Beams
Jain's W-Beams & Columns
Special Feature
- Low temperature rolling imparts higher strength to the structures.
- Pilling and automatic tying of the structurally ensure minimum damage during handling and transport.
- Invoicing : As per actual weight.
Item |
Size(mm) |
Sec.Wt. |
Sec.
Area,a |
D |
B |
T |
T |
kg/m |
kg/m |
mm |
mm |
mm |
mm |
||
ISSC ISSC ISSC ISSC ISSC ISSC ISSC ISSC ISSC ISSC ISWB ISWB ISWB ISWB ISWB ISWB ISWB ISWB ISWB |
100x100 140x140 152x152 152x152 152x152 152x127 160x160 204x204 204x206 200x200 200x140 203x133 203x133 203x152 203x203 203x203 203x203 203x203 203x203 |
20.00 33.30 37.10 23.00 30.00 37.20 41.90 49.90 52.00 60.30 28.80 25.00 30.00 52.00 46.00 52.00 60.00 71.00 86.00 |
25.50 42.40 47.40 29.30 38.20 47.40 53.40 63.60 66.20 76.80 36.70 31.80 38.20 66.50 58.60 66.20 76.40 90.40 109.60 |
100 140 152 152 152 152 160 204 204 200 200 203 203 203 203 203 203 203 203 |
100 140 152 152 152 127 160 204 206 200 140 133 133 152 203 203 203 203 203 |
6.0 7.0 7.9 6.1 6.6 10.4 8.0 8.0 8.0 9.0 6.1 5.8 6.3 8.9 7.3 8.0 9.3 10.3 13.0 |
10.0 12.0 11.9 6.8 9.4 13.2 13.0 12.5 12.5 15.0 9.0 7.8 9.8 16.5 11.0 12.5 14.2 17.3 20.5 |
